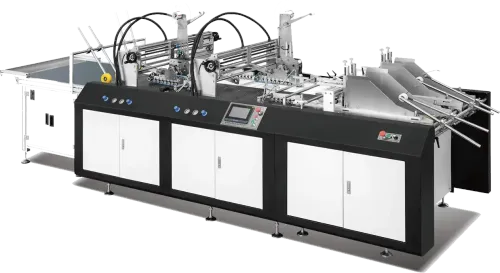

Automatic Double Sided Tape Applicator

DT-850 / DT-1200

Automatic Multihigh Double Sided Tape Applicator

  • Touch screen control for easy operation
  • Double sided tape applicator, tear tape applicator, scotch tape applicator & others
  • Suitable for paperboard and corrugated boxes E-B-C wave
  • Good frictional belt with longer life
  • Automatic feeding mechanism adopts the friction feeding method of folder gluer to ensure smooth feeding
  • Automatic high speed taping machine saves manpower and tape
Parameter DT-850 DT-1200
Paper weight Paper 200-600 g/m², corrugated 3-ply Paper 200-600 g/m², corrugated 3-ply
Paper size 140x100 mm to 850x850 mm 140x100 mm to 1200x850 mm
Working width 850 mm 1200 mm
Machine speed 90 m/min 90 m/min
Tape roll width 5-35 mm, 10-60 mm 5-35 mm, 10-60 mm
Accuracy ±1.5 mm ±1.5 mm
Air pressure Min. 6 bar Min. 6 bar
Machine power 4 kW (220V/50Hz) 4 kW (220V/50Hz)
DT-850 / DT-1200

MR-450B

Triangle Semi-Automatic Double-Sided Tape Machine

  • Max size of side sheet: 800x200mm
  • Min size of side sheet: 100x40mm
  • Max tape size: 170x170mm
  • Min tape size: 30x30mm
  • Production speed: 40-70 pcs/min
  • Power: 2 kW
  • Voltage: AC 220V
  • Machine size: 2200x900x1600mm
  • Machine weight: 400 kg
MR-450B

SD 700

Manual Double Sided Tape Machine

  • Double-sided adhesive size: 5x35mm
  • Maximum size of load: 700mm
  • Inside diameter of film roll: 76mm
  • Speed: 40-90 m/min
  • Minimum distance between ends: 10mm
  • Glue precision: ±1mm
  • Weight: 7 kg
  • Overall dimension: 760x240x60mm
  • Rated power: 24V/20W
SD 700
