Ample Graphics Pvt. Ltd.

Lamination

Explore our range of lamination machinery designed for precision and efficiency.

Film lamination bonds a BOPP, PET or MetPET film to a printed paper or board sheet, giving moisture resistance, print protection and a premium finish. It is a standard finishing step for food packaging, consumer goods and cartons. Ample Graphics supplies Tiancen's automatic film-lamination range: hot-knife machines for speed and film separation, and chain-knife machines for heavier paper stock, in 800 and 1080 widths.

The cutting system is the main decision: hot-knife machines run up to 100 m/min (compact models: 80 m/min). UPS-backed film tension control and MetPET delamination are standard on 1080-width hot-knife machines (optional on heavy-duty models). Chain-knife machines run BOPP, PET and MetPET with servo-controlled overlap at up to 8,000 sheets/hr.

Every machine ships with installation, commissioning and operator training across India. Use the comparison table below to shortlist, then request a quote with your paper and film mix and we will size the machine correctly.

Hot knife vs chain knife

How the two cutting systems differ on speed, paper range, edge quality and cost — and which to buy.

Lamination machines we supply (Tiancen)

Machine Cutting system Max sheet Speed

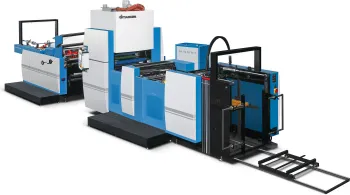

Compact hot-knife laminator Hot knife W800 x L1040 mm 80 m/min (10,000 sheets/hr)

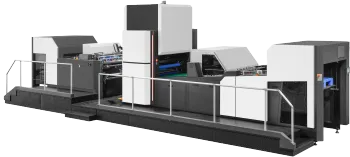

1080 hot-knife laminator Hot knife W1080 x L1200 mm up to 100 m/min
Chain-knife laminator series Chain knife series 800 / 1080 up to 8,000 sheets/hr
Dual-servo hot-knife laminator Hot knife (dual servo) W1080 x L1200 mm up to 100 m/min

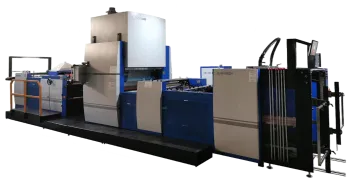

Heavy-duty hot-knife laminator Hot knife (heavy duty) W1080 x L1200 mm up to 100 m/min

Lamination lines, quoted for your output

Every machine includes pan-India installation, operator training and after-sales service from our Delhi NCR base. Quotes on request — no public price list.

Request a quote

Frequently asked questions

What is the difference between hot-knife and chain-knife lamination?

Hot-knife machines cut the film with a heated blade for fast, clean separation — the right choice for most BOPP and PET work at high speed. Chain-knife machines drive the blade with a chain and handle heavier, thicker paper stock more gently. Our full comparison of the two systems is in the buying guide linked below.

Which films do these machines laminate?

The catalog covers BOPP, PET and MetPET. 1080-width hot-knife machines include delamination for MetPET, a rotary disc knife for BOPP separation, and UPS-backed tension control (optional on heavy-duty models).

What is the maximum sheet size?

The 1080-width machines handle sheets up to W1080 x L1200 mm; compact models handle up to W800 x L1040 mm. Minimum sheet sizes are W320–W360 wide depending on machine.

What paper or board weights can the machines run?

Heavy-duty hot-knife models run 80–600 gsm; standard models run 105–500 gsm. These are sheet-fed film laminators for paper and board, not flute laminators for corrugated board — ply ratings do not apply to this range.
