Ample Graphics Pvt. Ltd.
Lamination

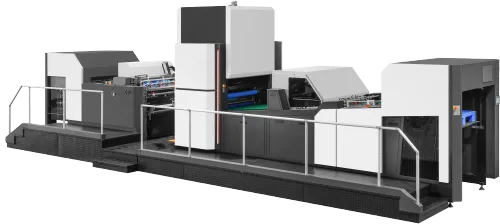

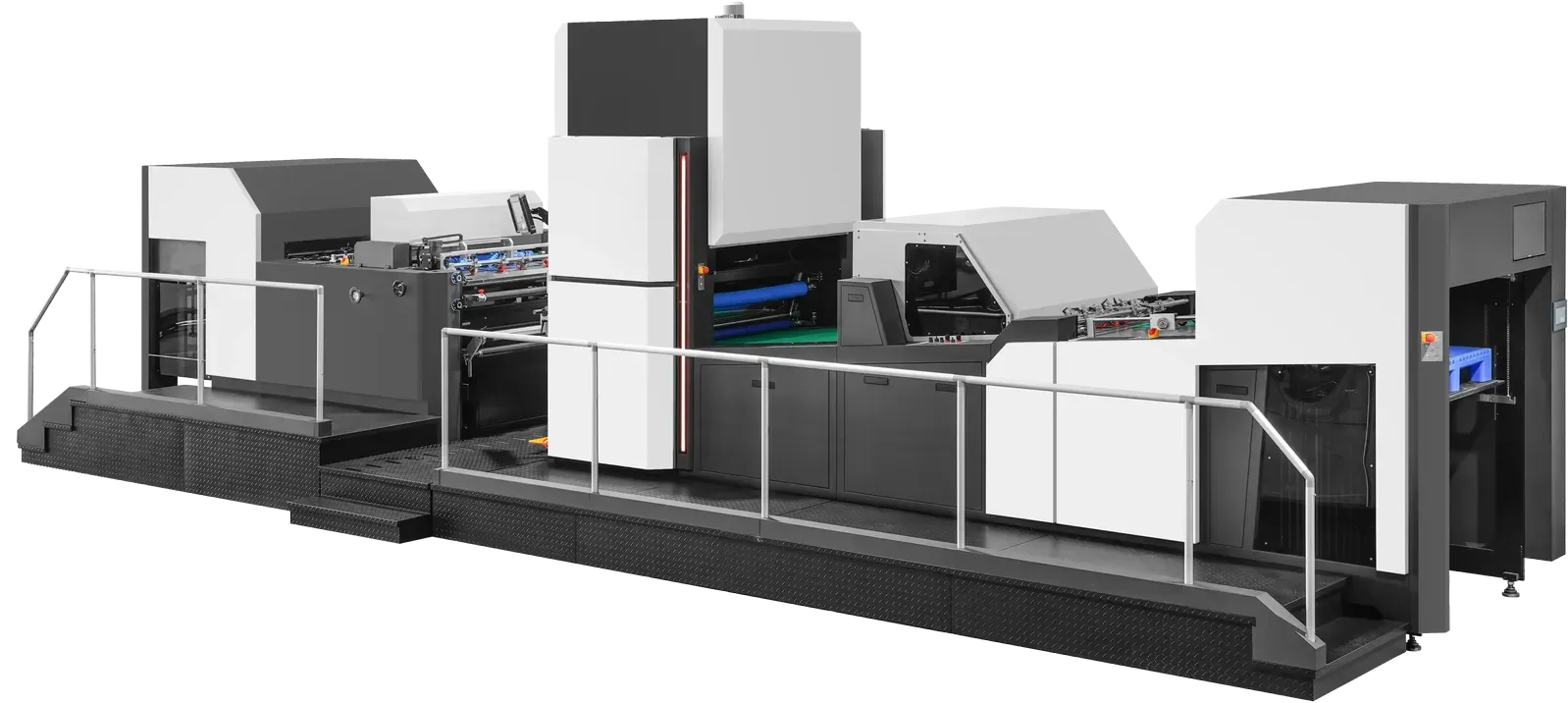

Fully Intelligent Hot Knife Film Laminating Machine

GFM1080MCRQ
  • Fully intelligent machine is equipped with all modern automation.
  • 26 servo motors for complete automation.
  • Equipped with double servo drives on hot knife for better finish.
  • Max sheet size W1080xL1200mm
  • Min. sheet size W320xL300mm
  • Sheet thickness range 80-600gsm
  • Feeder pile height 1500mm
  • Stacker pile height 1500mm
  • Max working speed of 100m/min
  • Installed power 120kW (Running Power 65kW)
  • Machine Dimension L14069xW3520xH3806mm

Applications

The fully intelligent hot-knife laminator in the range: 26 servo motors automate the sheet path, and double servo drives on the hot knife give a cleaner film edge. It laminates sheets from 320×300 mm to 1080×1200 mm on 80–600 gsm stock at 100 m/min with 1,500 mm feeder and stacker piles. For premium work — book covers, cartons and commercial print where edge finish is judged. With 1,500 mm feeder and stacker piles, operators spend less time reloading and more time running, which is where the 100 m/min speed actually pays off.

Frequently Asked Questions

What makes it 'fully intelligent'?

26 servo motors handle automation, with double servo drives on the hot knife for better edge finish.

What sheets does it laminate?

From 320×300 mm up to 1080×1200 mm, 80–600 gsm, at 100 m/min.

How much power does it need?

120 kW installed; running power is around 65 kW.
