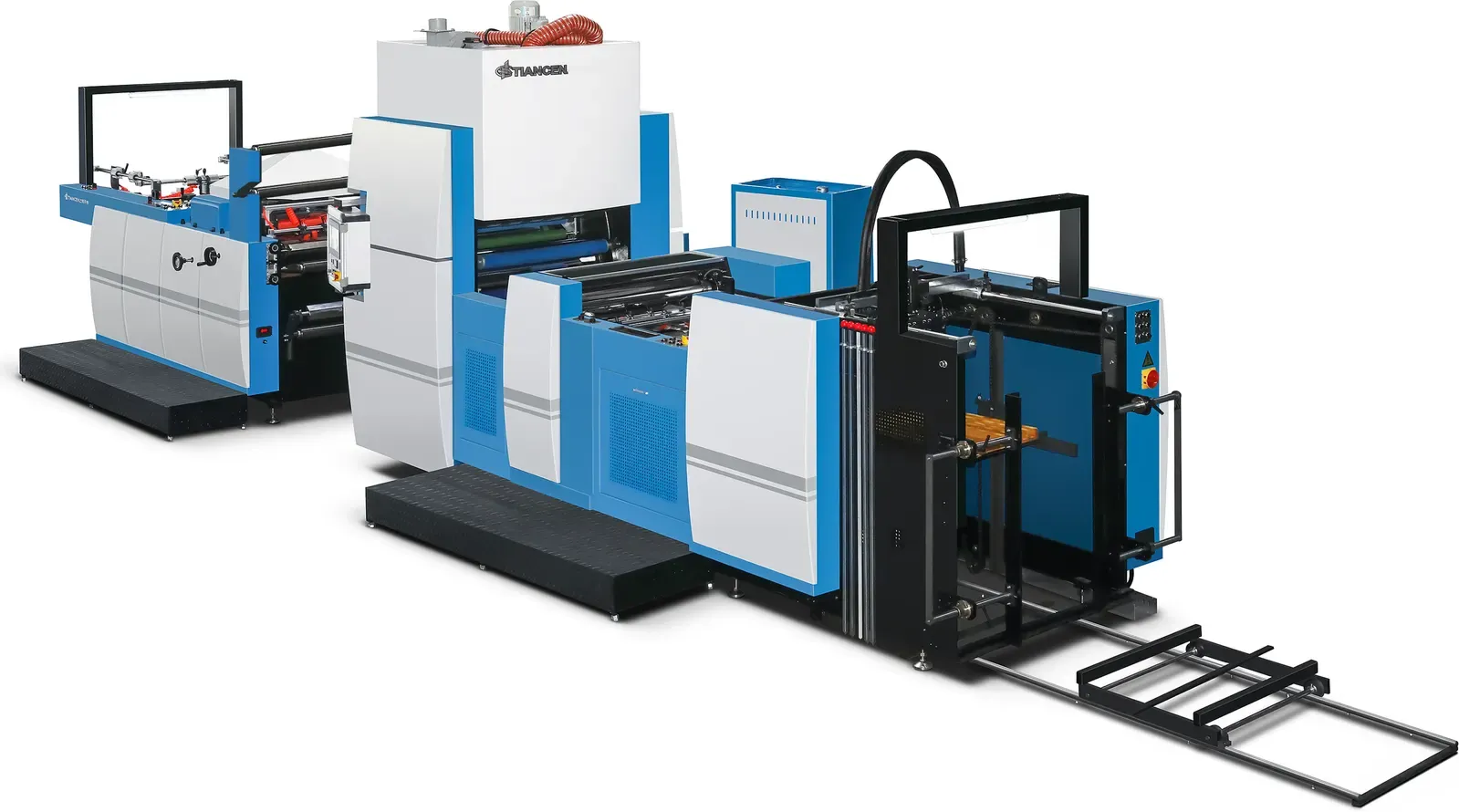

- High Speed Automatic Lamination Machine with Hot Knife
- Ideal for MetPET production with Delam feature
- UPS System for film tension control unit
- Pre-pile and continuous delivery
- Speed upto 100 m/min handling 105-500GSM papers
- Max. sheet size W1080xL1200mm
- Min. sheet size W360xL290mm
- Powder Removing Device
- Shaft for Strip Lamination
- Equipped with Rotary Disc Knife for BOPP Film Separation
- Feeder capable upto 11000 sheets per hour.
- Installed Power: 81kW (Running Power 40kW)
- Machine Dimensions L11200xW2900xH3100mm
- Glue Memory Function (optional)
Related Lamination
More lamination machinery we supply, install and service across India.
Applications
The upgraded KFM 1080: same hot-knife speed envelope as the MCR — 100 m/min on 105–500 gsm, sheets to 1080×1200 mm — with MetPET delam, UPS film-tension control and an optional glue memory function that recalls job settings. For plants standardising on one laminator across MetPET and BOPP work who want recipe recall between runs.
Frequently Asked Questions
How does it differ from the MCR?
Same 100 m/min, 105–500 gsm envelope, plus the optional glue memory function for job recall.
What does glue memory do?
It stores glue settings per job so repeat runs start at the right recipe without re-tuning.
What throughput can I expect?
Up to 100 m/min with the feeder taking 11,000 sheets an hour.
Interested in the High Speed Automatic Lamination Machine with Hot Knife (Upgraded)?
Get a quote and brochure for this machine.
