Lamination

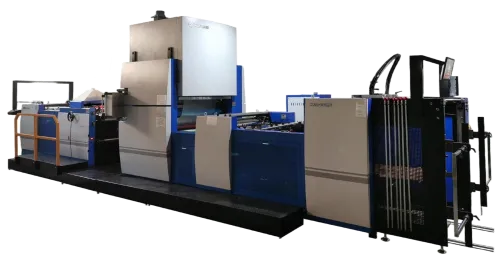

Heavy Duty Automatic Film Laminating Machine

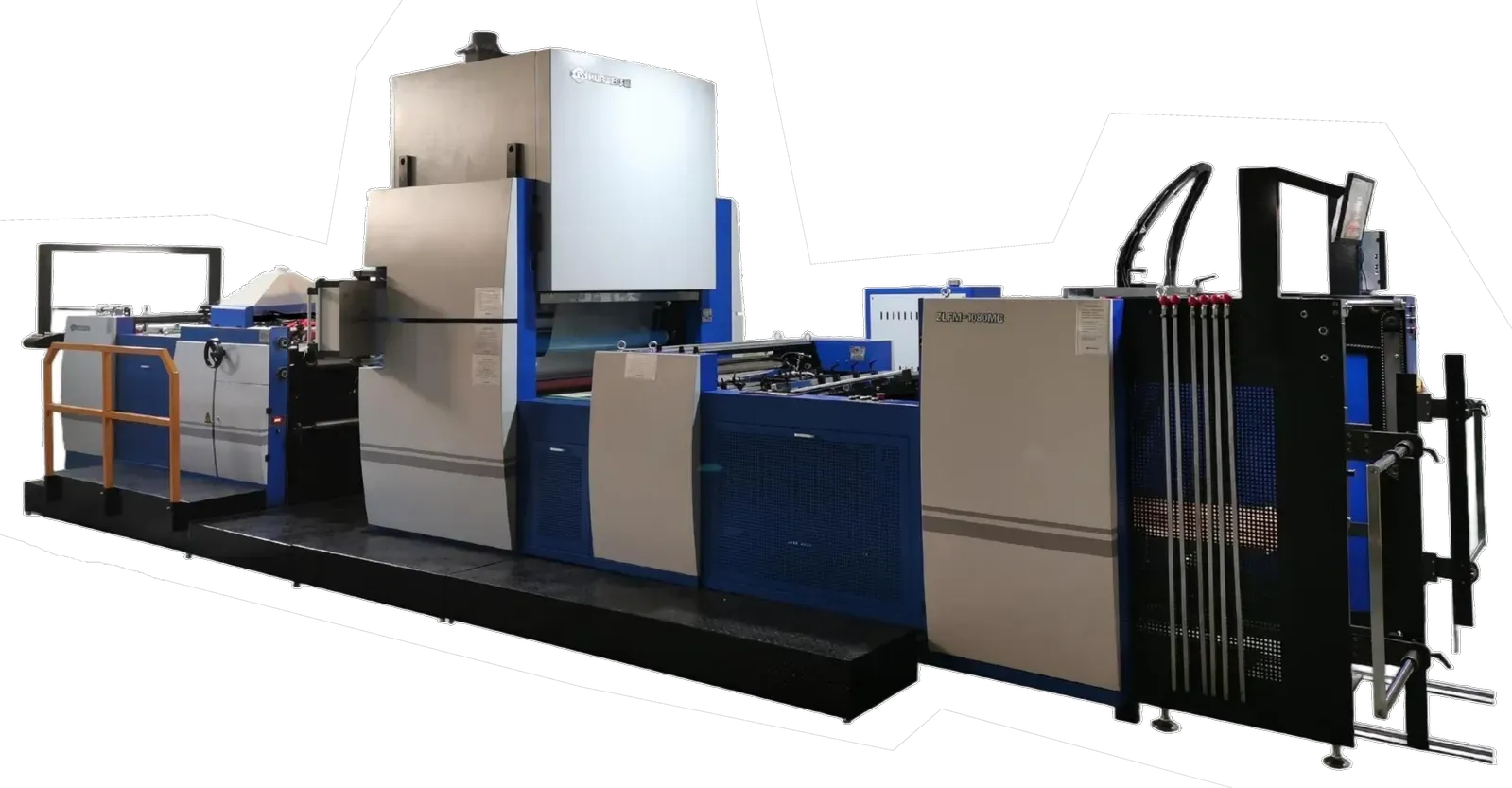

HFM-1080MCR
  • High Speed Automatic Lamination Machine with Hot Knife
  • Auto Correction in hot Knife cutting using double sensor
  • Cast Iron Body
  • Max. sheet size W1080xL1200mm
  • Min. sheet size W320xL350mm (450x350 with out correction)
  • Sheet thickness range 80-600g/m²
  • Feeder pile height 1300mm
  • Stacker pile height 1300mm
  • Max working speed of 100m/min
  • Installed power 86kW (Running Power 40kW)
  • Machine dimension L10306xW2900xH3080mm
  • Total weight 12000kgs
  • Corona Treater (Optional)
  • Delam Unit (Optional)

Applications

A heavy-duty hot-knife laminator on a cast iron body, built for continuous production: 1080×1200 mm sheets, 80–600 gsm, at 100 m/min. Double-sensor auto correction keeps hot-knife cutting aligned, and a corona treater or delam unit can be added for speciality film work. Suited to plants laminating full-format sheets on long runs. Corona treatment improves adhesion on hard-to-bond films. The delam unit is available for MetPET work, where the film has to be separated after lamination. The powder-removing device clears sheets before lamination, which protects the glue bond on recycled or heavily dusted paper/board stock.

Frequently Asked Questions

How does the hot knife stay accurate?

Double sensors auto-correct the knife position during cutting.

What options are available?

Corona treater and delam units are optional add-ons.

Why a cast iron body?

It damps vibration for stable lamination at 100 m/min on a 12-tonne machine.
