Corrugation
Explore our range of corrugation machinery designed for precision and efficiency.
A corrugation line turns liner paper and fluting medium into corrugated board. A single facer produces 2-ply single-face web; a flute laminator then glues a printed top sheet onto corrugated board — the step that gives a box its printed outer face. Conversion follows through printing, slotting and die cutting, with folder gluers closing the box. Ample Graphics supplies single facers and flute laminators from HRB Pack, high-speed flute laminators from Huawei, and printing, slotting, die-cutting and folder-gluer finishing equipment, with installation and commissioning across India.
The flute laminator sets maximum sheet size, the grade of bottom board it can handle, and throughput. In this catalog, ply describes the corrugated board being laminated, not a board-making step on the machine: 3-ply is single-wall board and 5-ply is double-wall board. Our catalog covers machines rated for 3-ply board (up to 190 m/min), machines for 5-ply board, and dual-mode machines (120 m/min on 5-ply board / 150 m/min on 3-ply board). Start from the sheet sizes customers actually order — key figures are compared below.
Every machine is quote-based: tell us your board mix, sheet sizes and target output, and our team will size the line, quote it, and handle installation, operator training and after-sales service from our Delhi NCR base. Visit us at PAMEX or talk to the sales desk directly.
How to choose a flute laminator
Ply, width, speed and the questions to ask before you sign — a practical buying guide.
Corrugation

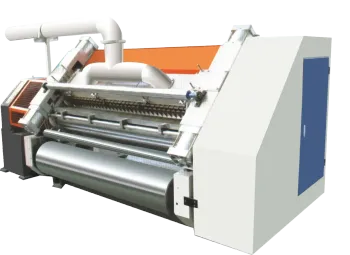

2-Ply Line Equipment
Corrugation

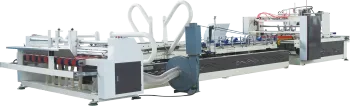

Automatic Folder Gluer
Corrugation
Flexo Printer and Folder Gluer
Corrugation
Box Stitcher
Corrugation
5-Ply Corrugated Cardboard Production Line
Corrugation

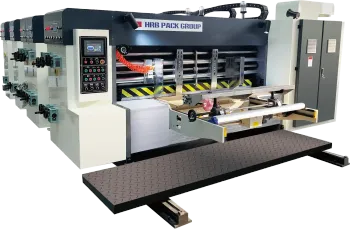

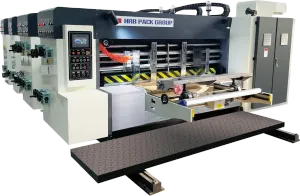

Fully-Automatic Printing Slotting Die-Cutting Machine
Corrugation
Automatic Flute Laminator
Corrugation
Automatic High-Speed Flute Laminator
Corrugation
Printer Slotter, Die Cutter
Corrugation

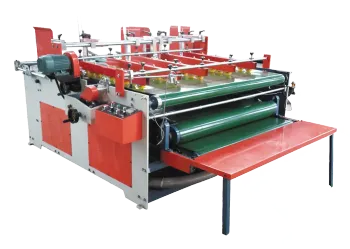

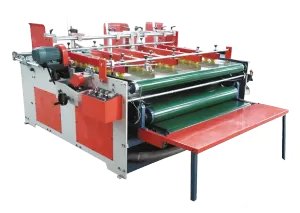

Folder Gluer Machine
Corrugation
Slitter Scorer and Rotary Slotter
Flute laminators we supply
| Machine | Bottom board | Max speed | Notes |
|---|---|---|---|

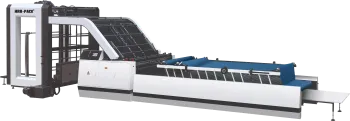

| HRB Pack 1300A | A/B/C/E/F flute | up to 100 m/min | 3-feeder system, 200–500 gsm face paper, up to 6,000 sheets/hr, optional automatic stacker |
| HRB Pack 1450F | 3, 5 & 7-ply | Manual to high speed | 3/5/7-ply bottom feeding; touch-screen / PLC / servo control; B-type option |
| Huawei HW 1450 / MAX | 3-ply (single-wall) | 190 m/min (up to 15,000 sheets/hr) | Yaskawa servo control; flutes A/B/C/E/F/G |

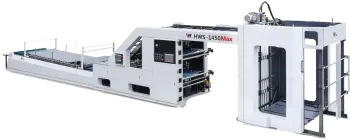

| Huawei HWS 1450 MAX | 3- and 5-ply board | 120 m/min 5-ply; 150 m/min 3-ply | Up to 15,000 sheets/hr on 3-ply; standard max 1450x1450 mm, larger sizes on request (1650x1650, 1900x1650) |
Corrugation lines, quoted for your output
Every machine includes pan-India installation, operator training and after-sales service from our Delhi NCR base. Quotes on request — no public price list.
Request a quoteFrequently asked questions
What is the difference between a 3-ply and a 5-ply flute laminator?
In this catalog, ply describes the corrugated board the laminator is built to feed and laminate onto — not a board-making step on the machine. A 3-ply-rated machine handles single-wall board (two liners around one fluted medium); a 5-ply-rated machine handles double-wall board (three liners around two fluted mediums), which is thicker and needs different feeding and pressing. If most of your boxes are heavy-duty or export packaging, specify a machine rated for 5-ply board; for light and medium consumer packaging, a 3-ply-rated machine is usually enough. The HRB 1450F is rated for 3, 5 and 7-ply bottom board.
How do I choose the laminator width?
Match maximum sheet size to the largest box blank you plan to cut. High-speed models: standard max 1450x1450 mm, larger sizes on request (1650x1650, 1900x1650); machines rated for 5-ply board: see the per-machine datasheet. Buy slightly larger than today's need — a large machine runs small sheets, not the reverse.
Do you install and train operators?
Yes. Ample Graphics installs and commissions every machine across India, trains your operators, and keeps a service desk in Delhi NCR with pan-India support. Installation and training are part of the quote, not an afterthought.
Which glue systems do these laminators use?
Machines use circulating glue systems — anilox rollers on the HRB machines, silicon-coated gluing rollers on the Huawei high-speed models. Your glue supplier will confirm the exact formulation for your board; the machine-side systems are automatic.
Can one laminator handle all flute types?
Most machines in our catalog handle bottom board in A, B, C and E flute. The Huawei high-speed models are listed for A/B/C/E/F/G. Check the per-machine specification sheet — request a quote and we will send the full datasheet.
