Automatic Flute Laminator

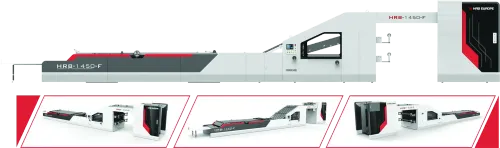

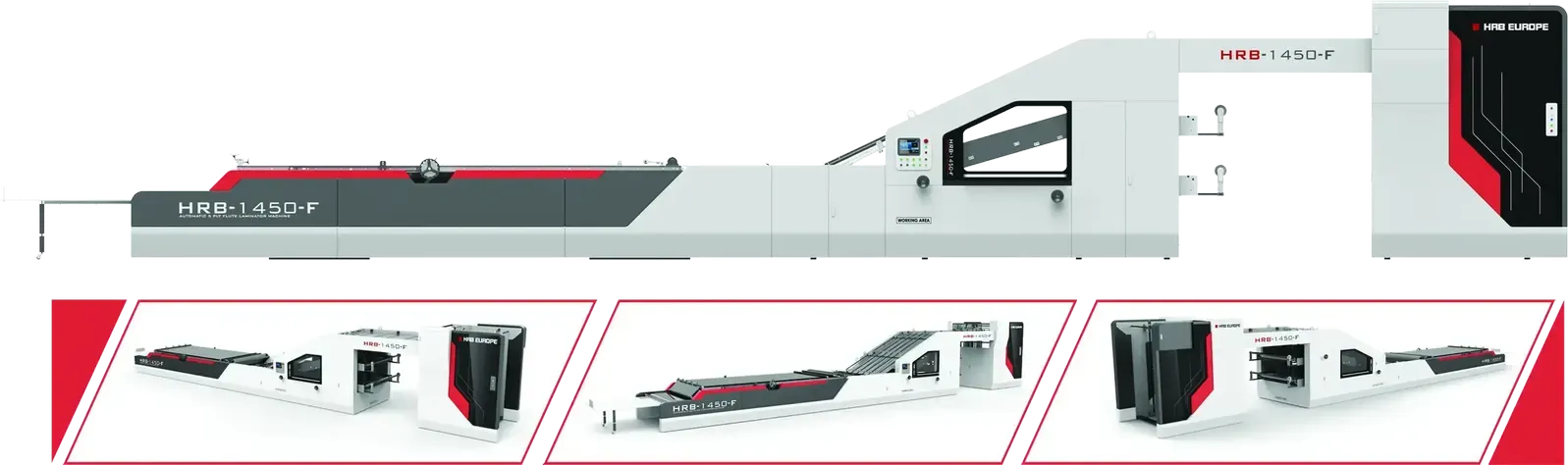

HRB 1450F

HRB Automatic Flute Laminator for 3-ply Board

  • Range of manual to high speed laminators
  • Adjustable synchronous sheet pusher for accurate control of top sheet with bottom paper
  • Suction feeding bottom device capable of supporting 3, 5 & 7 ply layers
  • Automatic glue circulating system and anilox roller for even glue application
  • Machine uses Touch-Screen / PLC / Servo Motor control system, which can automatically display failure alarms
  • Accuracy ranges from 1mm to 2mm depending on model
  • Additional size 1600x1250
  • B Type model also available
HRB 1450F

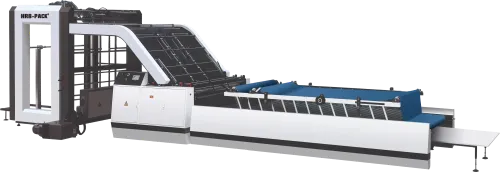

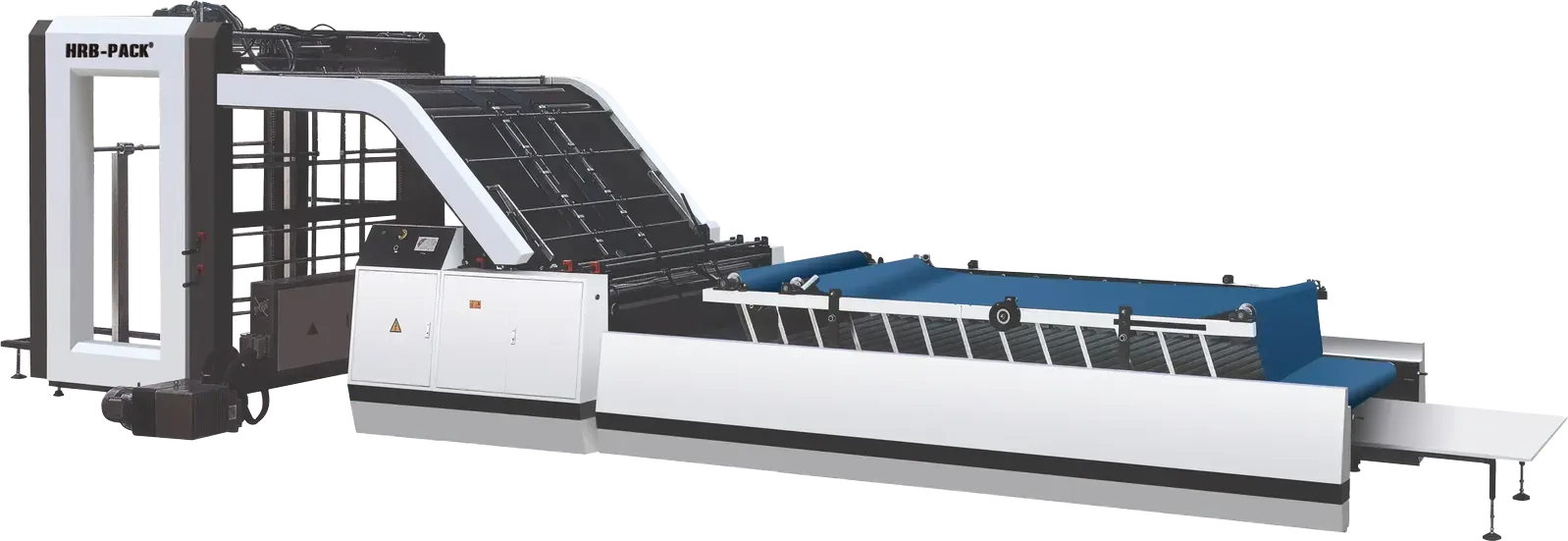

HRB 1300A

Fully Automatic Multilayer Flute Laminator

  • 3 Feeding System
  • Face paper handling range of 200-500 GSM
  • Both bottom paper feeder and vacuum suction feeding belt
  • Anilox Steel Roller for glue application
  • Frontlay adjustment range within ±1MM
  • Photoelectric detector for upper & bottom paper accuracy
  • Double Pre-Pressing roller in laminating unit
  • Bottom Paper handling range - A, B, C, E, F Flute
  • Speed upto 100 m/min
  • Speed range upto 6,000 sh / hr
  • Additional sizes 1300x1200 / 1600x1200
  • Optional Automatic Stacker
HRB 1300A

Applications

The entry to flute lamination: a range from manual to high-speed models laminating litho sheets to corrugated. The synchronous sheet pusher keeps the top sheet registered to the bottom paper within 1–2 mm, photoelectric detectors watch alignment, and suction feeding handles 3, 5 and 7-ply boards. Anilox glue application and touch-screen PLC control round out the platform — up to 100 m/min on A, B, C, E and F flutes.

Frequently Asked Questions

Which flutes and board grades can it handle?

The HRB 1300A lists A, B, C, E and F flute bottom paper with a 3-feeder system. The HRB 1450F is rated for 3, 5 and 7-ply bottom feeding. Confirm the exact model rating on the datasheet.

How is alignment kept accurate?

A synchronous sheet pusher plus photoelectric detection hold registration within 1–2 mm, depending on model.

What speeds do the models reach?

Up to 100 m/min, about 6,000 sheets an hour on the high-speed models.
