HW 1450 / HW 1450 MAX
High Speed Automatic 3-Ply Flute Laminator Machine
| Parameter | HW 1450 | HW 1450 MAX |
|---|---|---|
| Max laminating speed | 150 m/min (approx. 12,000 sheets/hr) | 190 m/min (approx. 15,000 sheets/hr) |
| Max sheet size | 1450x1450 mm | 1450x1450 mm |
| Top sheet weight | 120–600 GSM | 120–600 GSM |
| Laminating accuracy | 0.5–2.0 mm | 0.5–2.0 mm |
| Installed power | 380V/3φ, 40 kW | 380V/3φ, 40 kW |
| Flute types | A / B / C / E / F / G | A / B / C / E / F / G |
| Additional sizes | 1200x1200, 1650x1650, 1900x1650 mm | 1200x1200, 1650x1650, 1900x1650 mm |
- Servo controlled (Yaskawa) for higher precision, with multiple sensors monitoring top-sheet movement
- Silicon-coated gluing rollers; reduced make-ready time
- All flute types A/B/C/E/F/G can be laminated

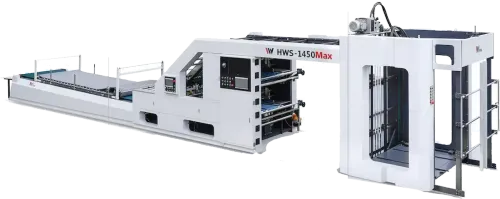

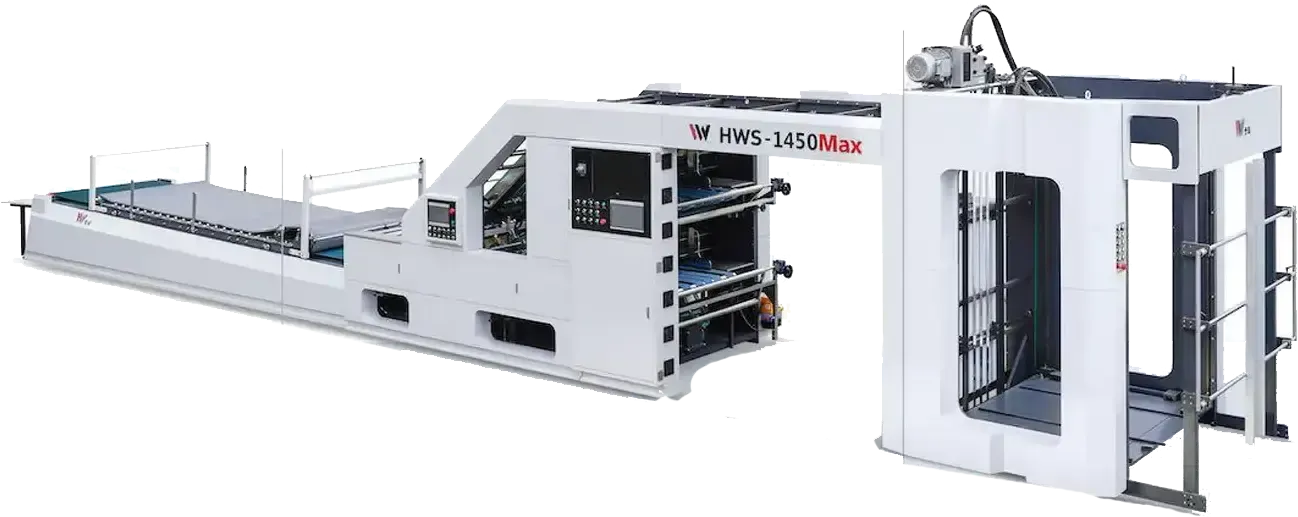

HWS 1450 MAX
High Speed Automatic 5-Ply Flute Laminator Machine
| Parameter | Value |
|---|---|
| Max sheet size | 1450x1450 mm |
| Min sheet size | 500x400 mm |
| Laminating speed | 120 m/min (up to 10,000 sheets/hr, 5-ply); 150 m/min (up to 15,000 sheets/hr, 3-ply) |
| Top sheet feeder | 150–600 GSM |
| Laminating accuracy | ±1.5 mm |
| Installed power | 380V/3φ, 48 kW |
| Top paper height | 1800 mm |
| Bottom paper/ply feeder | 400 mm |
| Flute types | A / B / C / D / E / F |
| Machine dimension | L15500 x W2600 x H2900 mm |
| Additional size | 1700x1650 mm |

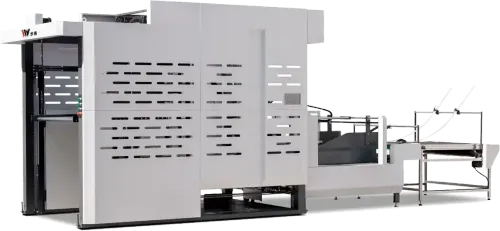

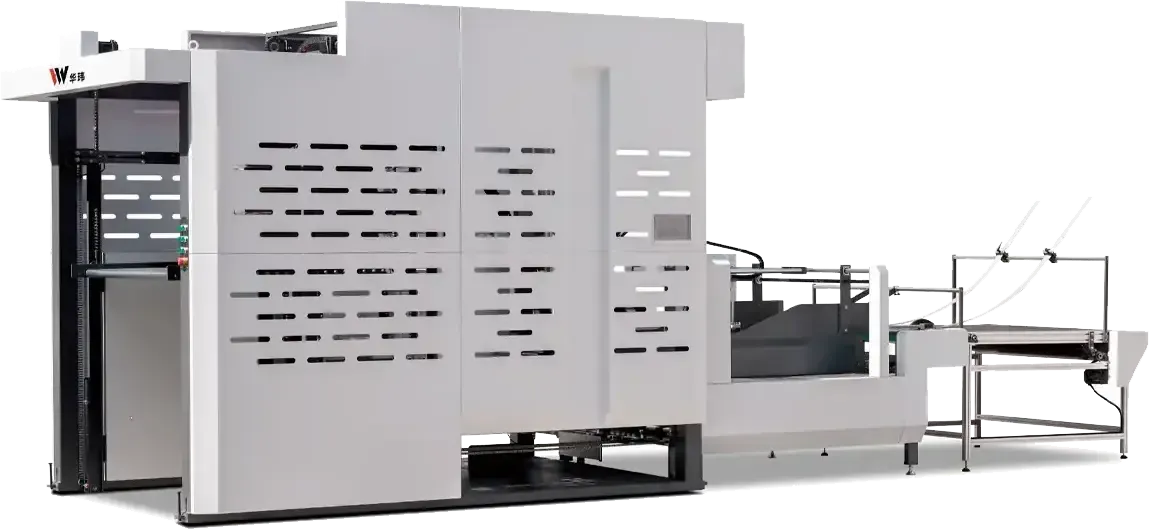

HWFZ-1450
Flip Flop Stacker
| Parameter | Value |
|---|---|
| Installed power | 380V/3φ, 8 kW |
| Weight | 2800 kg |
| Machine dimension | L8410 x W2570 x H2875 mm |
| Additional sizes | 1650 / 1700 / 1900 mm |
- Automatic flip-flop collection: stacks the front and back sides of the laminated sheet in one motion
