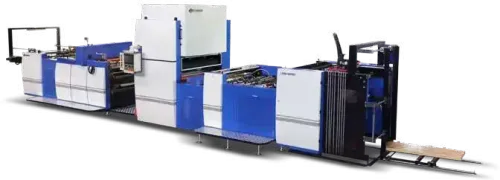

Fully Automatic Dry-Lamination Machine with Chain Knife

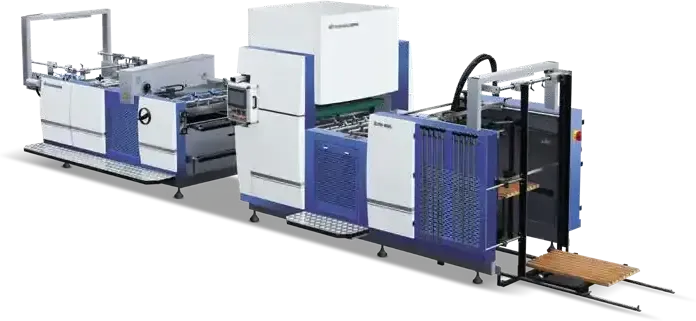

LZFM-800 / LZFM 1080MC
  • Ideal for use of BoPP, PET or MetPET Films
  • Automatic Feeder with Pre-pile. Side lay for aligned sheet feeding
  • Servo controller for precise overlap
  • Oil based heating system for low energy consumption
  • Individual temperature controller for drying chamber and laminating roller
  • Pneumatic control for film tension and Glue circulation. Magnetic Clutch to maintain continuous film tension.
  • Cutting blades are activated by sensor based encoder
  • Capable to handle 105-500gsm paper
  • Capable to laminate upto 8000sh per hour

More Images

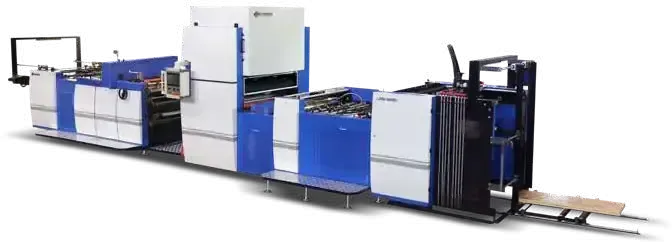

Fully Automatic Dry-Lamination Machine with Chain Knife — gallery 1

Applications

The chain-knife alternative in the Tiancen dry-lamination range, for BOPP, PET and MetPET films. A pre-pile feeder with side lay feeds sheets true, servo control holds overlap precise, and the oil-based heating system keeps energy use low. Film tension is pneumatic with a magnetic clutch, and encoder-triggered blades cut on register — up to 8,000 sheets an hour on 105–500 gsm paper.

Frequently Asked Questions

Which films does it laminate?

BOPP, PET and MetPET films on 105–500 gsm paper.

Chain knife or hot knife?

Chain knife — the encoder-triggered blade cutting option in the range, against the hot-knife KFM models.

How fast does it run?

Up to 8,000 sheets an hour.
