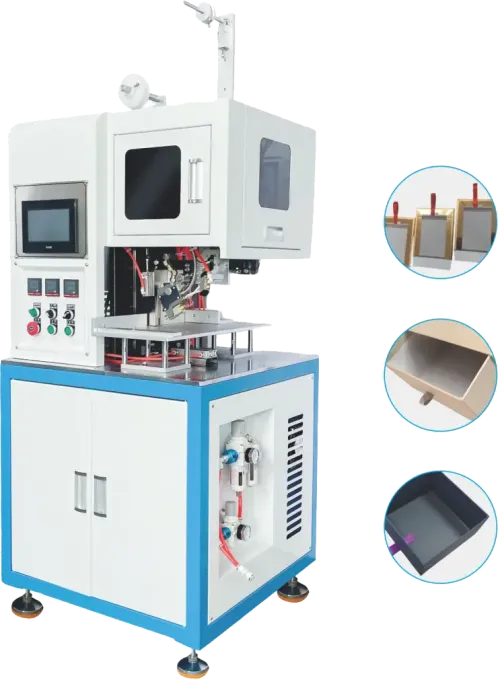

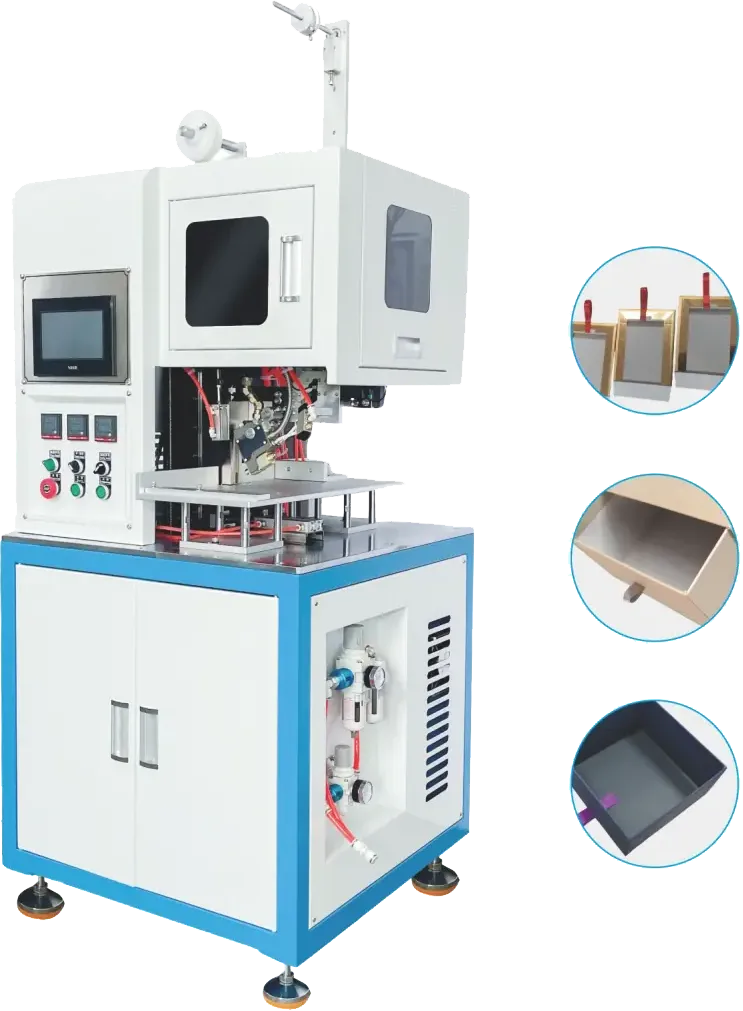

Ribbon Pasting Machine
- The equipment automatically cuts the Ribbon, applies the glue, attaches or threads the Ribbon, and kicks the box.
- PLC Based precision alignment with 0.05MM accuracy at 20-22pcs /min.
- Digitally controlled Ribbon length from 10-60mm with width ranging from 10-20mm.
- Optional system to add trademarks or logos.
- High speed, high accuracy spray gun with high speed electromagnetic valve for low consumption of glue.

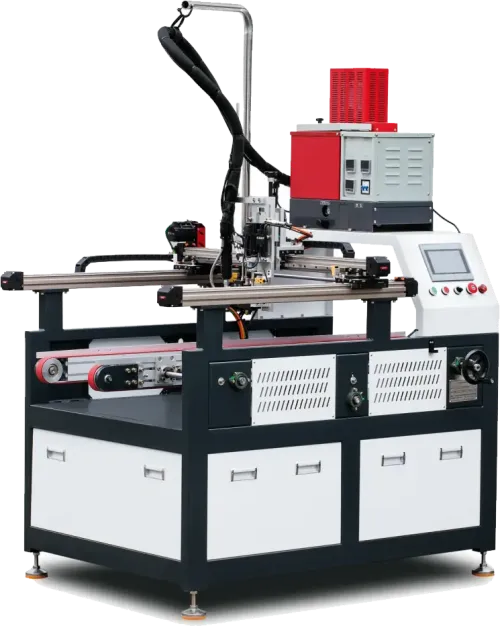

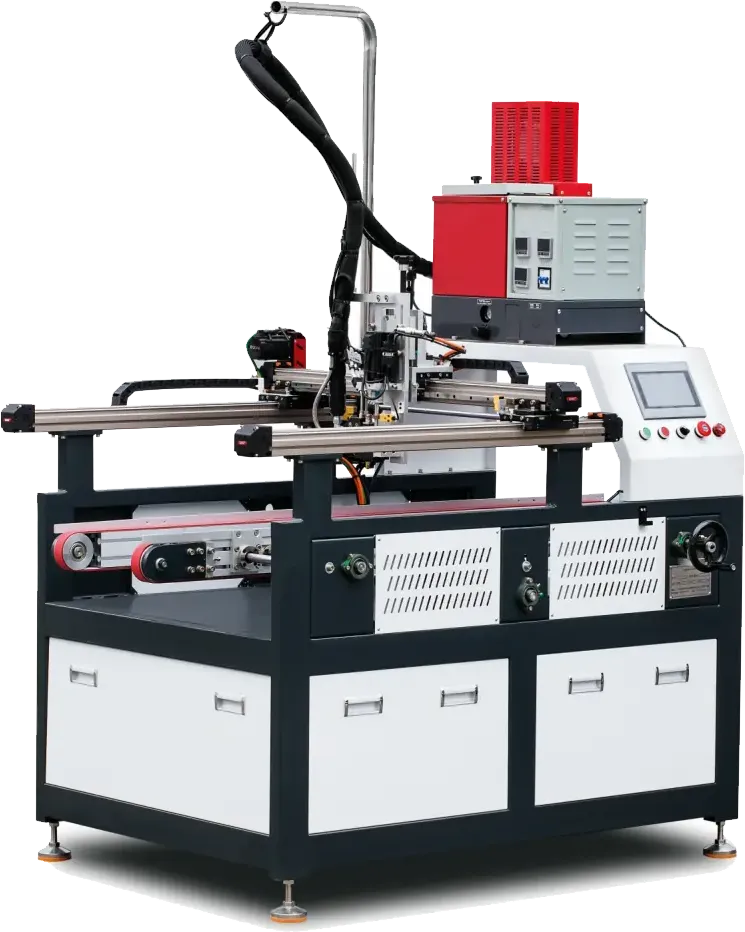

Glue Spraying Machine
- Automatic feeding, dispensing and discharging with one high performance control system
- Speed of 25-30pcs / min with a positioning accuracy of 0.1MM
- Max Box size 450*500MM and a height range of 10-120MM
- Servo based system for high stability and high accuracy
- Fast speed, strip spraying glue dispensing system for strong bonding and no leakage.

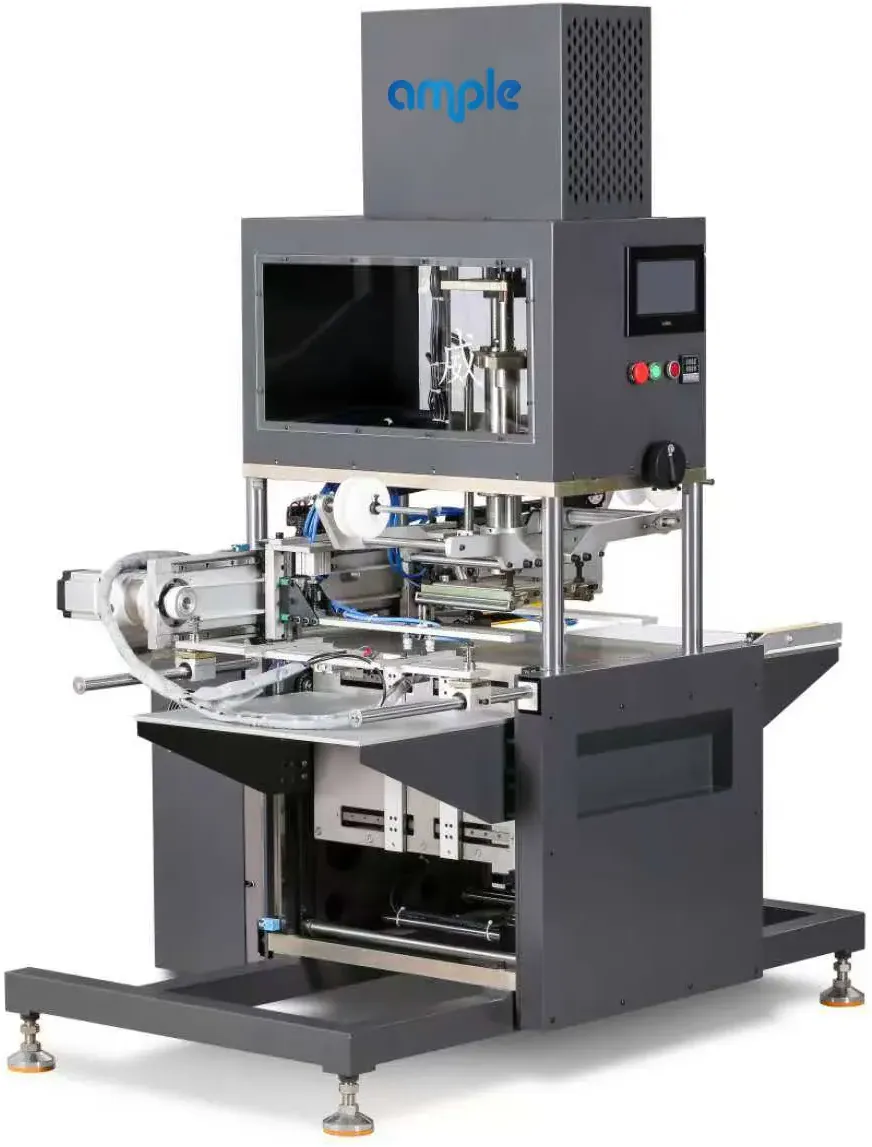

Automatic Hot Stamping Machine
- This machine is especially used for paper sheet, PVC, PU, etc automatic hot foiling in printing & packaging industry.
- Automatic paper feeding and reciving are all controlled by servo motor with high precision, accuracy within 0.1mm
- Foiling main shaft is driven by 1500W servo motor achieving 0-1.5 tons pressure adjustment, Foiling plate uses high precision temperature controller, thermocouple, and 400W heating plate, temperature can be controlled within 2-3 degrees.
- Foiling paper moving is controlled by stepping motor with accuracy of 0.2mm.
- Whole machine is operated by PLC+ Touch panel+high precision servo motor+air cylinder, with space saving design. Especially suitable for jewelry box, wallet & watch box, small hardcover, red pocket, demonstration box PVC etc.
Related Rigid Box
More rigid box machinery we supply, install and service across India.
Interested in the Rigid Box Accessory Machines?
Get a quote and brochure for this machine.
