Ample Graphics Pvt. Ltd.
Ample (AG)
Rigid Box

Semi-Automatic Rigid Box Making Line

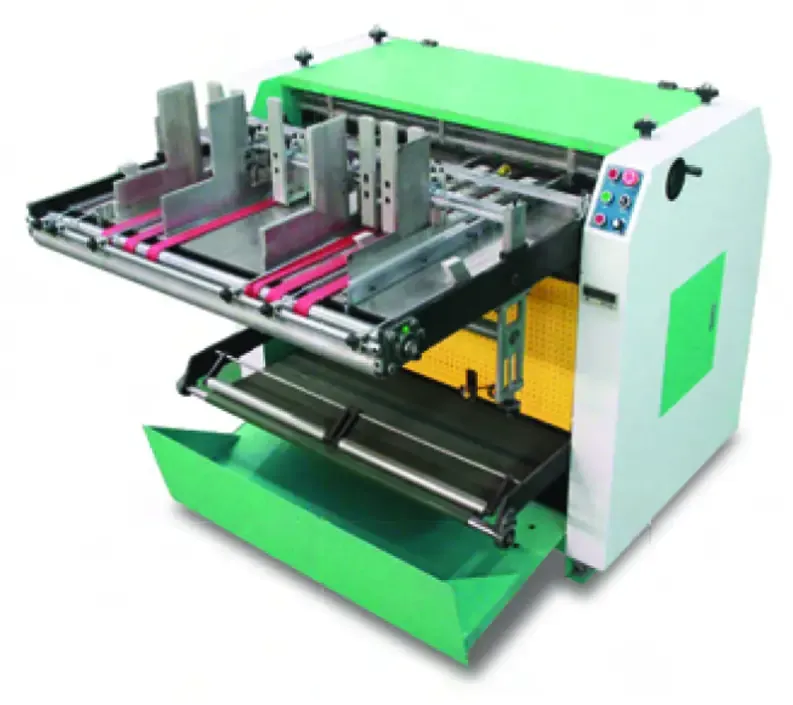

1. Grooving Machine (AG-1000)

  • Grooves and bends the edges of rigid box board to size — first process in the semi-automatic rigid box line
  • Cardboard Size: L 90-600 mm, W 90-1050 mm, T 0.5-3 mm
  • Speed: 10-35 m/min
  • No. of Groove Holder: 10
  • Power: 1.5 kW / 220V
  • Dimension: 1500x1300x1250 mm
1. Grooving Machine (AG-1000)

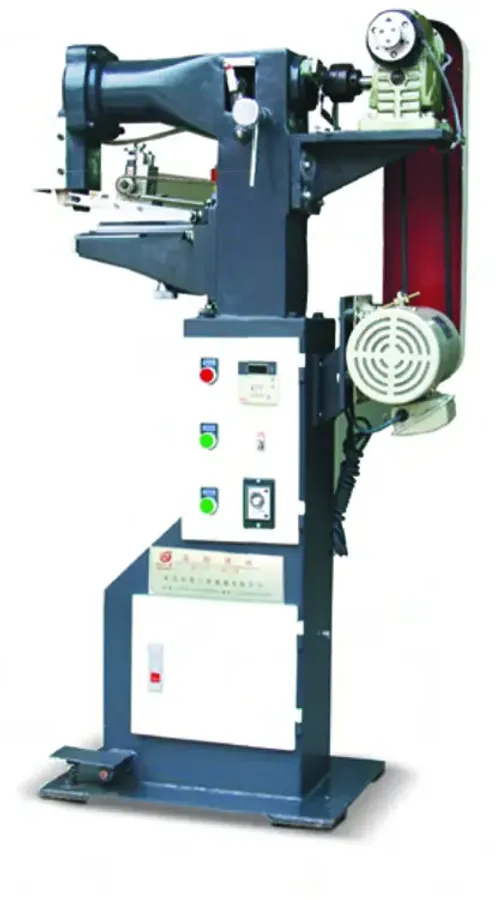

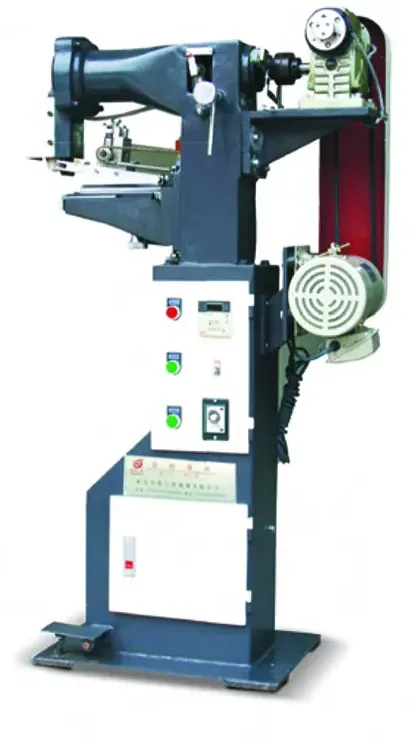

2. Manual Taping Machine (AG-40)

  • Manual taping of box edges by hand — low-cost option for small batches and prototypes
  • Min Box Size: 40x40x10 mm
  • Speed: 20-40 pcs/min
  • Power: 0.4 kW / AC 220V
  • Dimension: 800x500x1400 mm
2. Manual Taping Machine (AG-40)

3. Gluing Machine (AG-800A)

  • Applies glue to the edges of rigid box board before assembly — even glue application for a consistent bond
  • Paper Width: 80-800 mm
  • Speed: 7-40 pcs/min
  • Power: 7.45 kW / 220V
  • Dimension: 6350x1800x1100 mm
3. Gluing Machine (AG-800A)

4. Forming Machine (AG-500)

  • Forms the lid and base of the rigid box
  • Max Box Size: 500x400x120 mm
  • Min Box Size: 80x60x10 mm
  • Speed: 22 pcs/min
  • Power: 1.5 kW / 220V
  • Dimension: 1100x1400x2100 mm
  • Other Models: XL 550x400x150 mm, SL 45x45x12 mm
4. Forming Machine (AG-500)

5. Bubble Pressing Machine (AG-890)

  • Presses assembled rigid boxes to set the glue and keep corners crisp — final finishing step before the box is packed
  • Max Box Size: 450x400x150 mm
  • Min Box Size: 50x50x10 mm
  • Speed: 0.85 m²/min
  • Power: 1.5 kW / 220V
  • Dimension: 900x800x1600 mm
5. Bubble Pressing Machine (AG-890)
