Die Cutting

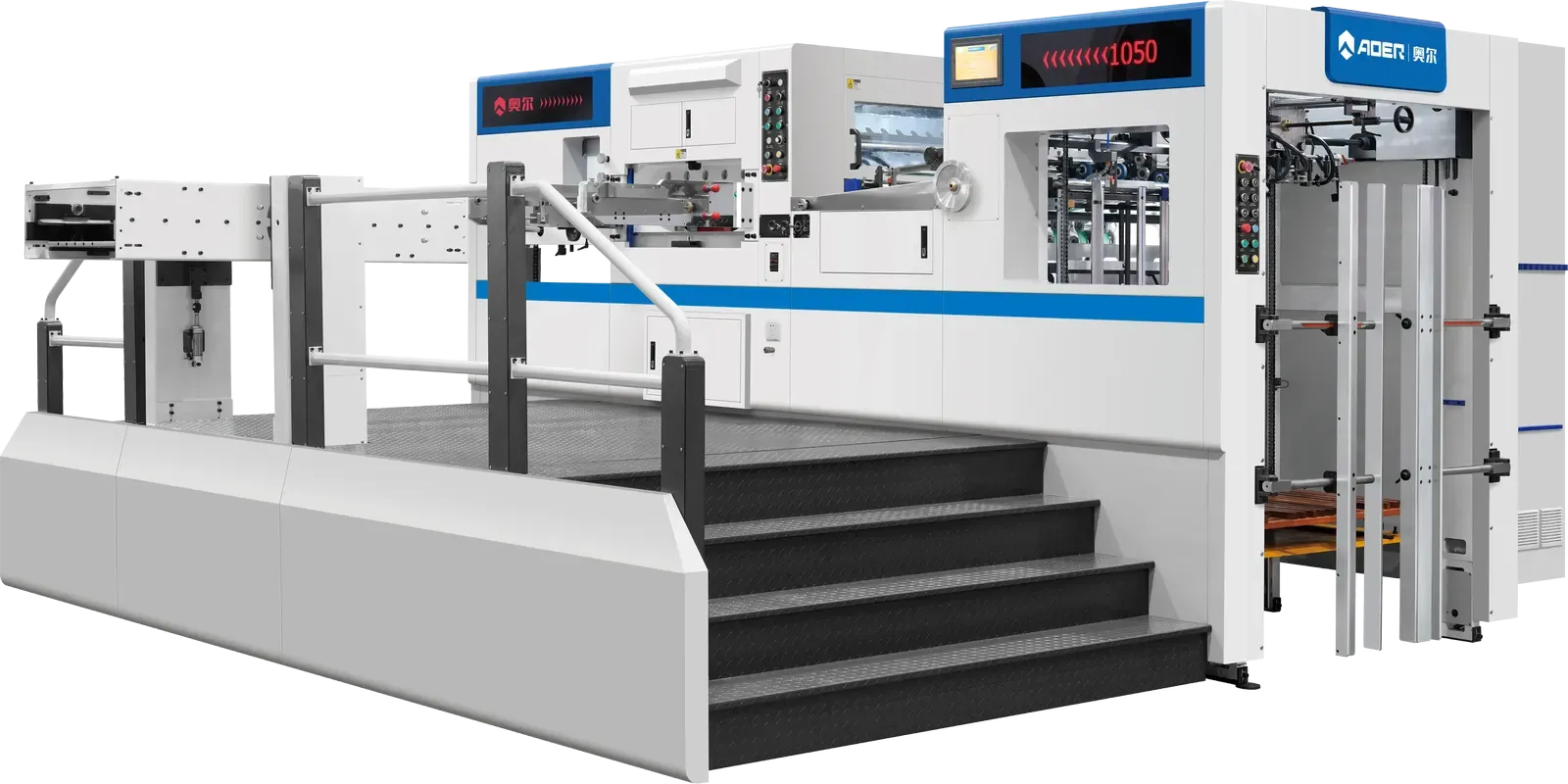

Automatic Die Cutting Machine (with Stripping)

AEM-1050Q

Automatic Die Cutting Machine (with Stripping)

  • Max Size – 1050x750mm
  • For Duplex & 3 Ply cartons
  • Max Speed – 7500 S / H
  • Cutting Accuracy – 0.1mm
  • Total Power – 17.8KW
  • Weight – 16T
  • Max Pressure – 300T
  • Available in big size 1350/1500/1650
  • Semi Automatic/Bottom Feeder/Lead Edge

Applications

Flatbed die cutting for duplex and 3-ply cartons: sheets up to 1050×750 mm cut at 7,500 sheets an hour with 0.1 mm accuracy under 300 t of pressure. The semi-automatic bottom feeder suits carton converters running premium folding-carton and litho-laminated work, and 1350/1500/1650 frames cover larger formats. Litho-laminated sheets, folding cartons and displays all pass through the same tooling setup, and the semi-automatic feed keeps an operator in the loop for fragile or premium stock that a fully automatic feeder would mishandle. Request a quote with your sheet size and board grade and we will confirm the frame size that matches your line.

Frequently Asked Questions

Which materials does it cut?

Duplex board and 3-ply corrugated cartons up to 1050×750 mm.

What speed and accuracy?

7,500 sheets an hour with 0.1 mm cutting accuracy.

Is there a bigger version?

Yes — the platform extends to 1350, 1500 and 1650 sizes.
