Die Cutting

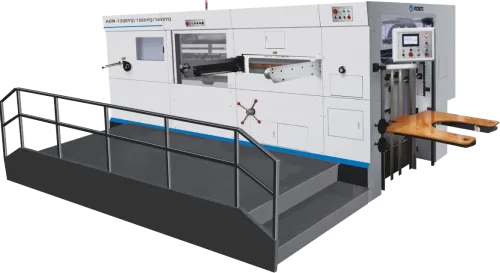

Die Cutting Machine for Corrugated

AEM-1300Y

Manual Feeding

  • Max Speed – 5000 S/H
  • Machine Weight – 15 T
  • Available in other size – 1500Y / 1650Y
Specification Detail
Max paper size 1320x980 mm
Min paper size 470x370 mm
Cutting Accuracy ≤±0.2 mm
Max pressure 250 N/cm²
Total power 17.8kW
Machine Dimension L3300(+2800)xW2350(+1900)xH2250 mm

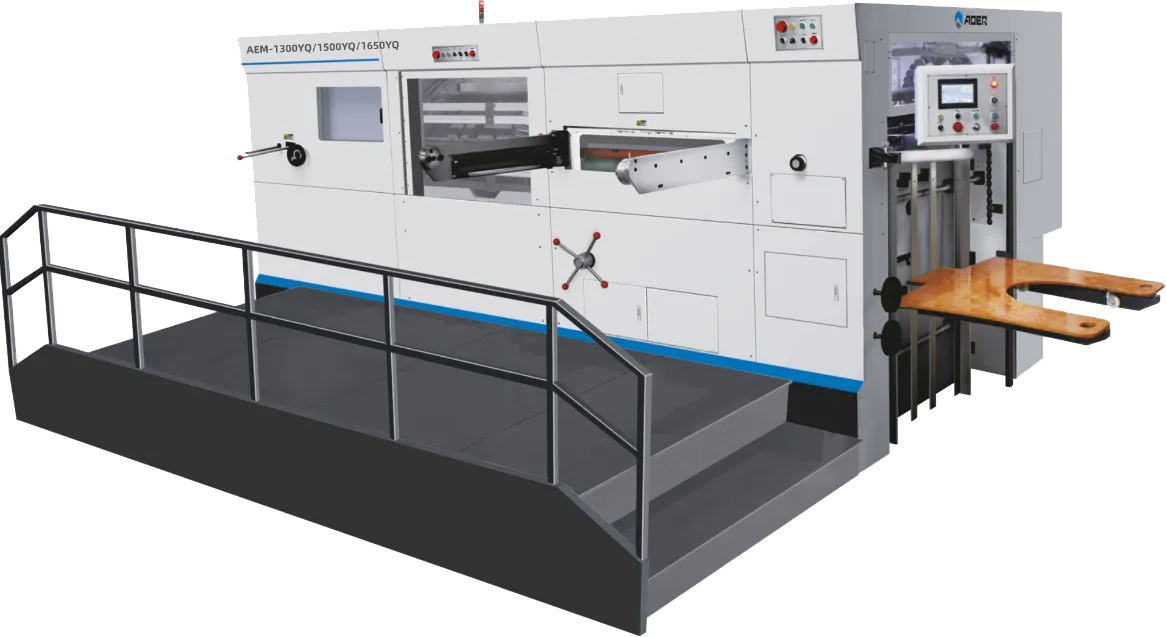

AEM-1300Y

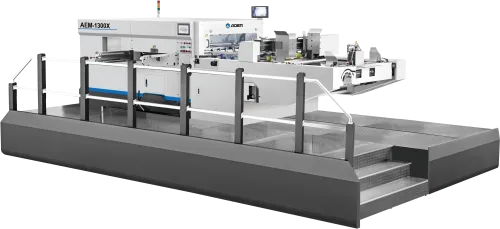

AEM-1300X

Bottom Feeding

  • Max Speed – 5000 S/H
  • Machine Weight – 19 T
  • Available in other sizes -1500X/1650X
  • Also available with Lead Edge feeding system
Specification Detail
Max paper size 1320x980 mm
Min paper size 470x370 mm
Cutting Accuracy ≤±0.2 mm
Max pressure 250 N/cm²
Total power 17.8kW
Machine Dimension L6000(+1800)×W2350(+1900)×H2350mm

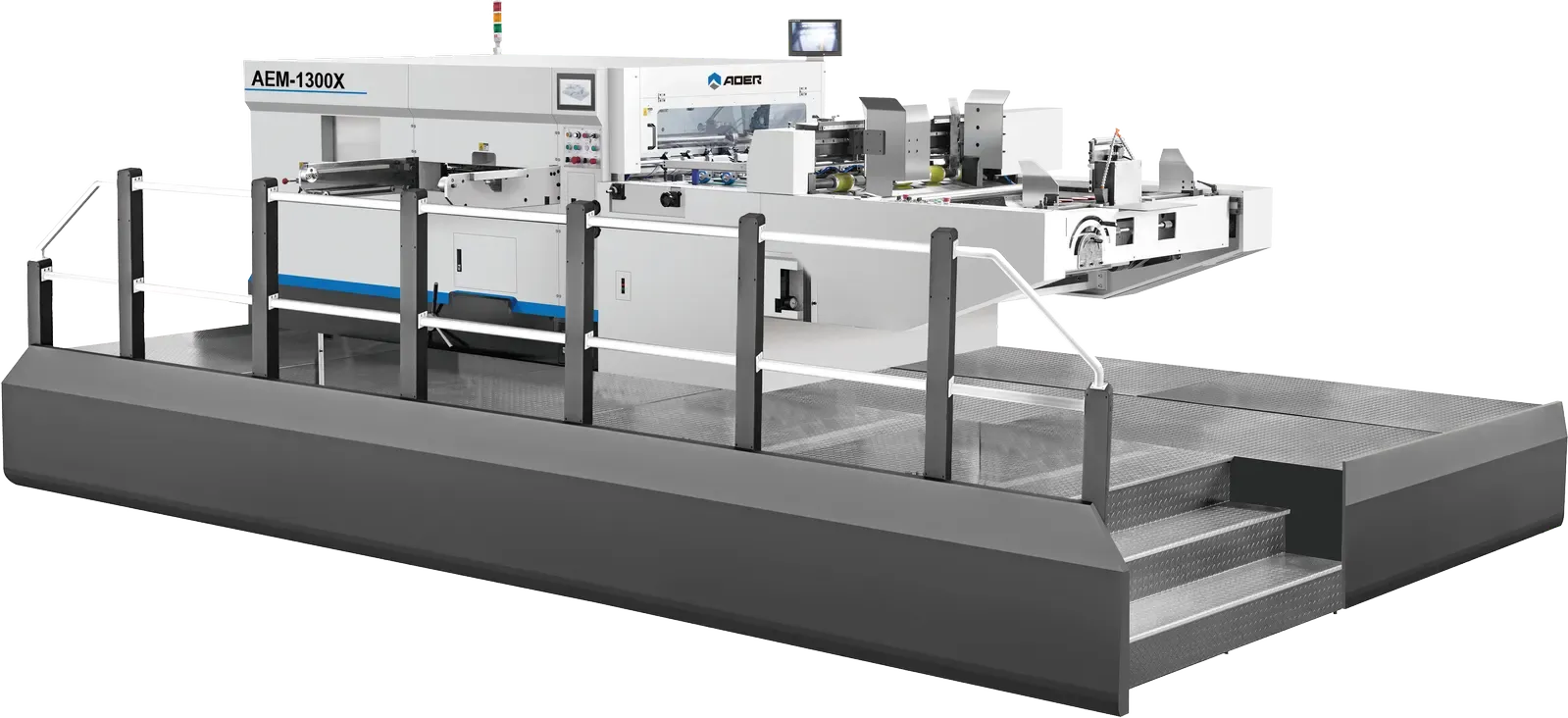

AEM-1300X

Applications

Heavy-format flatbed die cutting for corrugated: 1320×980 mm sheets at 5,000 sheets an hour with ±0.2 mm accuracy under 250 N/cm² of pressure. The standard frame runs bottom feeding; the second configuration adds lead-edge feeding, and 1500/1650 frames extend to wider board. For box plants needing large-format flatbed cutting with stripping.

Frequently Asked Questions

What sheet size does it take?

Up to 1320×980 mm, minimum 470×370 mm.

What configurations are available?

Standard and lead-edge feeding versions; 1500 and 1650 frame sizes are also offered.

What accuracy does it hold?

±0.2 mm cutting accuracy at 5,000 sheets an hour.
