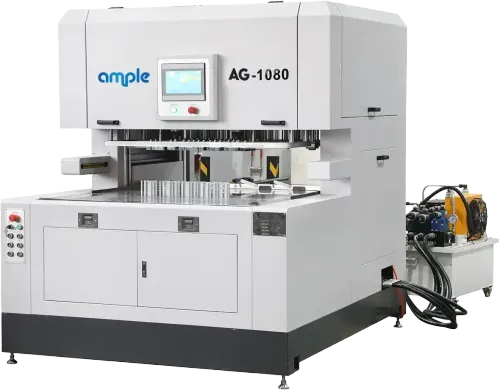

Full-Page Stripping Machine

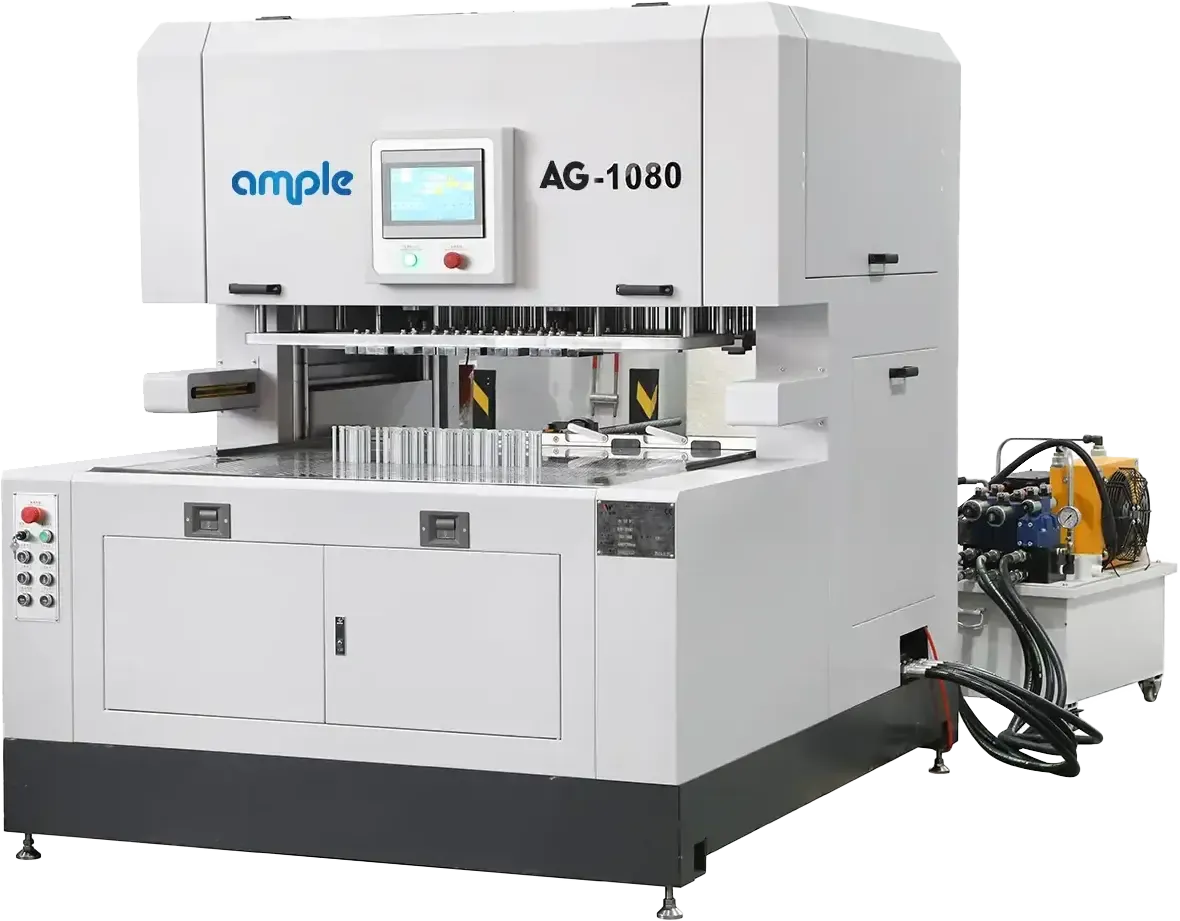

AG 1080

Specification Detail
Max Sheet Size 1080x780mm
Max Product Size 400x200mm
Stripping Height 40-120mm
Speed 1-2 /min
Voltage 380V/50Hz
Machine Weight 3.5 ton
Overall Dimension 2000x1700x1950 mm
AG 1080

DHAG 1080

Specification Detail
Max Sheet Size 1080x780mm
Max Product Size 420x280mm
Stack Height 120mm
Speed 20 strokes/min
Type Double head, pin type (model with mould attachment also available)
Options Single & 3-head options available
Optional Single/double robotic arm with exit conveyor
DHAG 1080

Related Other Products

More other products machinery we supply, install and service across India.

Applications

Clears waste from die-cut corrugated sheets before they reach the folder gluer. The full-page stripping model handles sheets to 1080×780 mm; the double-head pin-type variant runs 20 strokes a minute with single- and 3-head options and robotic-arm loading. Plants running heavy die-cutting schedules use it to strip waste automatically instead of by hand. Manual stripping of full-page waste is slow and inconsistent; this machine standardises the pass so the folder gluer receives clean, aligned blanks every time. Ask about the mould-attachment model when your blank designs need pin-stripping with shaped waste channels.

Frequently Asked Questions

What sheet size does it take?

Up to 1080×780 mm, with stripping heights of 40–120 mm.

Is there an automated loading option?

Yes — single or double robotic arm with exit conveyor.

How many heads are available?

Double-head pin type as standard, with single and 3-head options.
