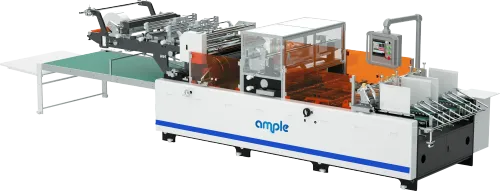

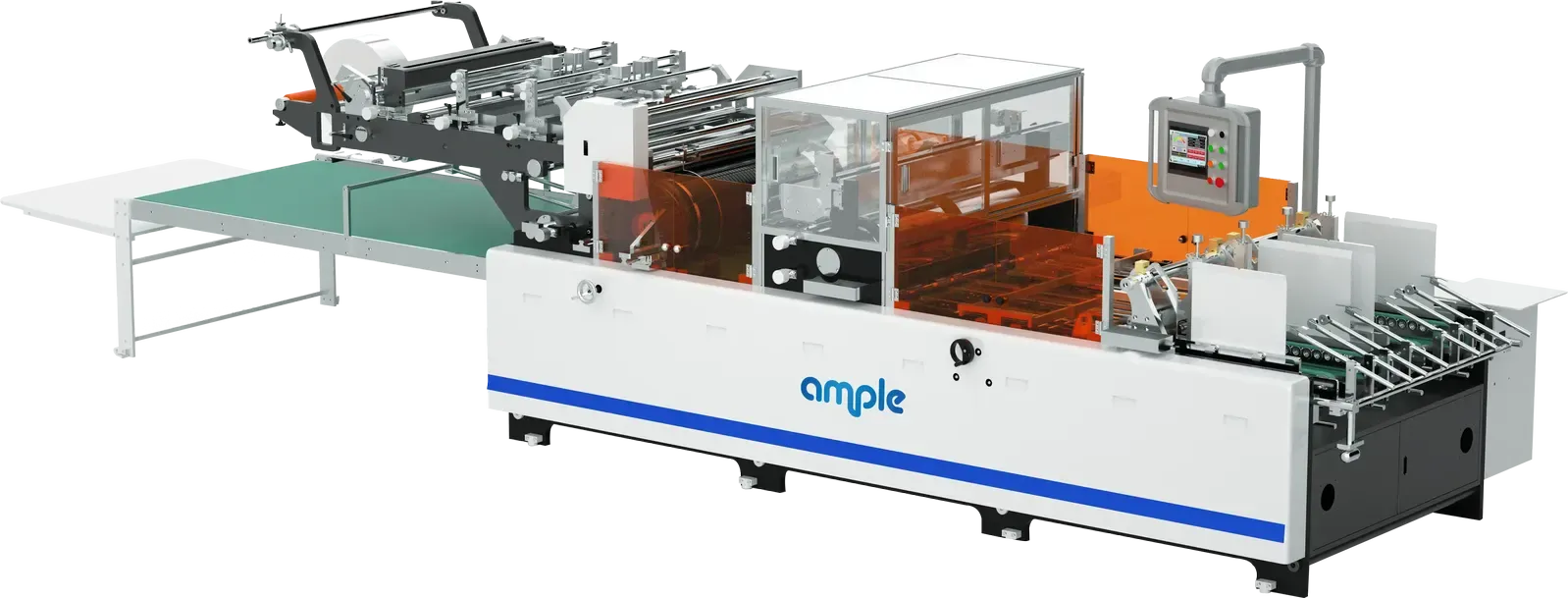

Full Servo High Speed Window Patching Machine

Full Servo High Speed Window Patching Machine

  • All type of film such as PVC/PET/OPP can be used
  • The machine is equipped with 9 servo motors

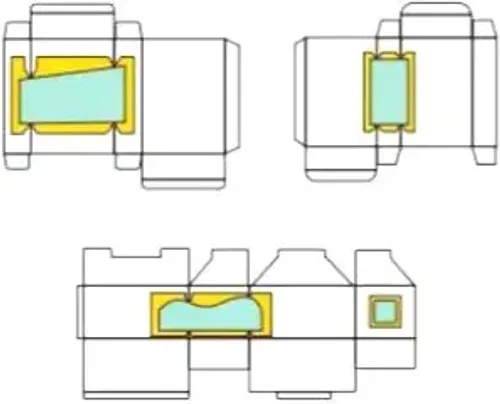

  • Capable of making creasing, V-notch shape punch (using cutting moulds) and embossing
  • Film thickness ranging from 0.03 – 0.25mm
  • Peculiar gluing assembly avoids glue on belt in case of no paper
  • Available in 3 models: FMX-850 HST, FMX-1100 HST & FMX-1300 HST
  • Speed range from 3000 to 24000 sheets an hour
  • Model with dual lane also available
  • Paper thickness: corrugated board <5mm, cardboard 200-2000 g/m²
  • Can use preprinted film (optional feature)
Full Servo High Speed Window Patching Machine

FMW-800HS

  • Paper Size: W880xL720mm – W150xL150mm
  • Film Size: W450xL450mm – W30xL60mm
  • Paper Thickness: Cardboard 200-2000 g/m², corrugated board 1-6mm
  • Film Thickness: PET 0.03-0.25mm, PVC 0.03-0.3mm
  • Positioning Accuracy: Top/Bottom ±0.75mm
  • Mechanical Speed: 3000-24000 sheet/hour
  • V-Notch Speed: up to 12000 sheets/hour
  • Power Voltage: 380V/50Hz (3φ)
  • Machine Power: 16kW
  • Machine Weight: 2800 kg
  • Dimension: L6200 x W1650 x H1750 mm
FMW-800HS

FMX-1100HST

  • Paper Size: W1100xL720mm – W150xL150mm
  • Film Size: W650xL450mm – W30xL60mm
  • Paper Thickness: Cardboard 200-2000 g/m², corrugated board <5mm
  • Film Thickness: PET 0.03-0.25mm, PVC 0.03-0.3mm
  • Positioning Accuracy: Top/Bottom ±0.75mm
  • Mechanical Speed: 3000-24000 sheet/hour
  • V-Notch Speed: up to 10000 sheets/hour
  • Power Voltage: 380V/50Hz (3φ)
  • Machine Power: 23kW
  • Machine Weight: 3000 kg
  • Dimension: L6200 x W1850 x H1750 mm
FMX-1100HST
